High-Speed Industrial CIJ Printer Precision Coding for Paper Tubes

The Challenge of the Curve—Eliminating Manual Inefficiency in Cylindrical Substrates

Manufacturers of industrial rolls, tapes, and paper tubes have long struggled with a specific logistical nightmare: providing clear, legible traceability on the inside of a product. Traditional coding methods often involve manual labeling or pre-printing, both of which are prone to human error, high costs, and significant production bottlenecks.

The core customer pain point was the inability to apply real-time, variable data—such as batch numbers, manufacturing dates, and QR Code—onto the inner diameter of rotating tubes without halting the production line or damaging the substrate.

Challenges: Overcoming Technological and Speed Barriers

1. The Geometry of the Inner Wall

Printing on a flat surface is standard, but printing on a concave, circular inner wall presents a massive technological challenge. Standard inkjet heads are bulky and designed for vertical or horizontal flat-pass printing. Positioning a printhead inside a small-diameter tube requires a compact, versatile design that can print accurately across a curved gap without distortion.

2. Speed and Synchronization

Industrial lines for tape and paper tubes move at high velocities. The challenge was twofold:

• Linear Speed: The printer must keep up with a fast-moving conveyor.
• Rotational Dynamics: If the tube is rotating or moving at an angle, the high-speed coding machine must synchronize its firing frequency perfectly to ensure the characters do not "stretch" or overlap.

3. Maintenance in Dusty Environments

Paper tube manufacturing is inherently dusty. Typical industrial inkjet printers suffer from frequent nozzle clogs when exposed to paper fibers and debris, leading to expensive downtime and maintenance cycles.

Solution: The KGK Jet JPT2900 Continuous Inkjet Printer

KGK Jet implemented the JPT2900, a premium industrial CIJ printer engineered for high-performance integration. The solution featured several key technological components tailored to this specific application:

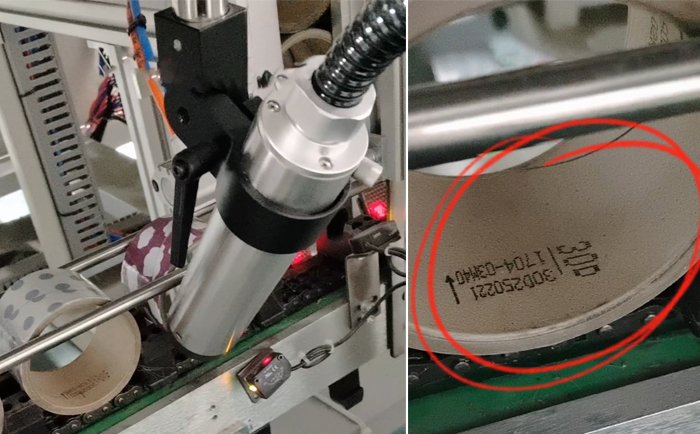

• Compact P-Type Printhead: The JPT2900 utilizes a new-generation, compact printhead that allowed for angled positioning. As seen in the image, the printhead is mounted at a precise angle to code into the core of the moving paper tubes.
• Non-Contact Printing Machine Technology: Utilizing the continuous inkjet printer principle, the ink droplets are deflected in flight. This allowed the system to maintain a "throw distance" up to 10 mm that accommodates the curvature of the inner wall without physical contact.
• Fast Drying Industrial Ink: KGK used specialized MEK-based inks. These are fast drying industrial ink printers by design, ensuring that as soon as the code is applied to the paper core, it is dry before the next tube in the stack can smudge it.
• Patented Nozzle Capping: To combat the dusty paper-mill environment, the JPT2900 features KGK Jet’s patented Automatic Nozzle Capping Technology. When the printer is idle, the nozzle is physically sealed, preventing ink from drying. Moreover, KGK Jet CIJ machines feature a positive air system that safeguards the printhead opening from paper dust.

Performance Results

The implementation of the online CIJ printer led to a transformation in the customer's production efficiency:

• Flawless Legibility: Even on the porous, curved surface of the inner paper tube, the JPT2900 delivered crisp, 2-line alphanumeric codes
• Production Continuity: The system achieved a high-speed coding rate of over 2500 characters per second, matching the conveyor’s maximum speed without a single missed print.
• Zero Smudge Rate: Due to the high-adhesion, quick-dry ink, the rejection rate due to unreadable or smeared codes dropped to 0%.

Key Benefits

• Low Maintenance CIJ Printer: The nozzle capping technology reduced the need for manual cleaning by 90%, allowing the line to run 24/7 without intervention.
• Versatile Substrate Handling: While this case focused on paper tubes, the inkjet printer for industrial use demonstrated it can easily switch between porous paper and non-porous films.
• Cost Efficiency: By moving from manual labeling to an industrial inkjet printer, the customer saved significantly on consumables (labels/ribbons) and labor costs.
• Traceability: Real-time printing of time-stamped data ensured that every single roll could be traced back to the exact minute of production.

Conclusion

The KGK Jet JPT2900 has proven that no surface is "unprintable." By combining a low maintenance CIJ printer with advanced angled-jetting capabilities, KGK Jet solved a complex geometry problem that had long hindered the industrial paper tube and tape industry. This non-contact printing machine provides the perfect balance of speed, durability, and precision, making it the definitive inkjet printer for industrial use where space and reliability are at a premium.
