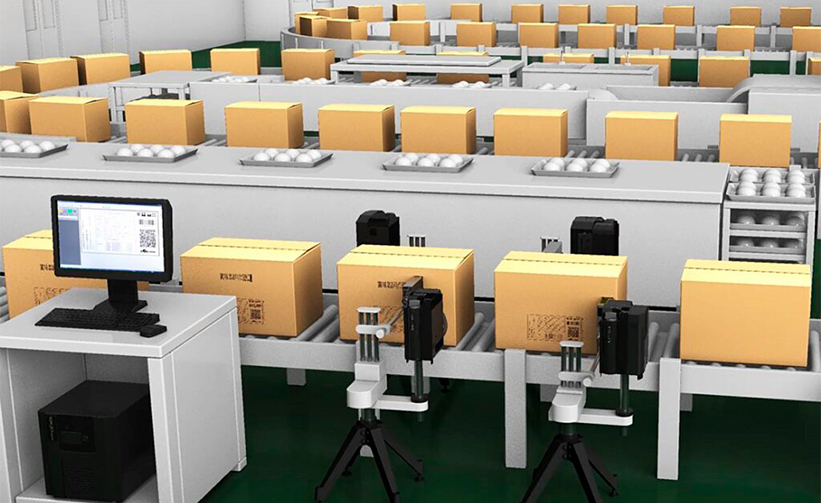

Top 5 Challenges in Secondary Packaging Carton Coding and How to Overcome Them

In modern manufacturing, logistics, and supply chain ecosystems, the secondary packaging line is the final frontier before a product hits the distribution channel. While primary packaging protects the individual product, secondary packaging—typically corrugated boxes and outer cartons—is responsible for tracking, compliance, brand reputation, and seamless transit logistics.

Executing precise Carton Coding and Case Coding is no longer just about stamping a batch number; it is an essential component of trace-and-track systems, inventory management, and regulatory compliance. However, setting up a seamless, automated system for coding on box surfaces comes with its own unique set of mechanical, chemical, and environmental hurdles.

If your production line is plagued by smudged barcodes, frequent printhead cleanings, or costly pre-printed box inventories, you are not alone. Let's explore the top 5 challenges in secondary packaging Corrugated box coding and detail how advanced engineering from KGK Jet India can solve them to dramatically improve productivity, accuracy, and reliability.

Challenge 1: Print Quality and Barcode Scannability on Porous Substrates

The Challenge

Corrugated boxes and outer cartons are inherently porous materials made of recycled fibers, kraft paper, or testliners. The structural surface of these materials is uneven, fibrous, and highly absorbent. When standard inks are applied, they tend to bleed, feather, or sink too deeply into the fibers. This causes high-density barcodes (such as GS1-128 or 2D DataMatrix codes) to become blurry, losing the sharp contrast required by high-speed supply chain scanners.

The Production Impact

If a distribution center scanner misreads a barcode due to poor print contrast, the entire pallet or shipment can be rejected. This results in costly chargebacks, shipping delays, manual re-labeling expenses, and strained vendor relationships.

The KGK Jet Solution

To counter substrate absorbency, manufacturers must transition away from low-resolution systems to high-efficiency Drop on demand printers. KGK Jet India provides advanced Piezo-driven Drop On Demand Printers designed specifically for high-contrast, high-resolution marking on porous surfaces.

By utilizing a premium range of specialized Water-, Ethanol-, Oil-, or UV-based inks, these systems maintain precise droplet placement without bleeding. The inks are scientifically formulated to stay vivid on the surface layer of the porous substrate, achieving crisp, consistent codes up to 600 DPI. Furthermore, these inks are engineered to prevent nozzle clogging, ensuring that the industrial ink jet printer delivers continuous performance without frequent manual wiping.

Challenge 2: Printhead Damage and Downtime from Irregular Boxes

The Challenge

In a perfect world, every corrugated box moving down a conveyor belt would be perfectly square, flat, and uniformly aligned. In reality, production environments deal with warped flaps, bulging boxes, structural variations, and slight misalignments on the line. Traditional inkjet systems require the printhead to be positioned extremely close to the box surface to maintain resolution. When a deformed or bulging box passes by, it causes physical contact—a collision or bump—between the box and the delicate nozzle plate.

The Production Impact

Printhead collisions cause immediate physical damage to the nozzle geometry, leading to misdirected ink drops, standard line distortions, or complete printhead failure. Replacing damaged printheads creates catastrophic line downtime and drives up total cost of ownership (TCO).

The KGK Jet Solution

KGK Jet solves this vulnerability through mechanical innovation with the KGK Jet HQ8500 controller paired with the M800 printhead.

The M800 printhead features an extended throw distance, achieving a printing gap three times longer than previous industry standards. This eliminates the need for the printhead to ride dangerously close to the corrugated surfaces, providing a safe buffer against bumps, bulging boxes, or line vibrations.

• Character Height: 56.2 mm
• Resolution: 360 DPI
• High-Speed Capabilities: Prints at 60 m/min at full 360 DPI, or accelerates up to 120 m/min at 180 DPI.

Challenge 3: High Inventory Costs and Waste from Pre-Printed Boxes

The Challenge

Historically, to ensure high-quality branding, compliance layouts, and product descriptions on secondary packaging, manufacturers relied on buying pre-printed corrugated boxes in massive quantities. However, managing hundreds of stock-keeping units (SKUs) of unique, pre-printed boxes creates logistical nightmares. If a regulatory requirement changes, a ingredient list shifts, or a product line is discontinued, thousands of pre-printed boxes instantly turn into scrap waste.

The Production Impact

Tying up working capital in massive warehouses filled with pre-printed boxes restricts cash flow. Additionally, handling errors, physical damage during storage, and the inevitable obsolescence of text lead to direct material waste.

The KGK Jet Solution

The modern strategy is simple: Print when you need it. The solutions from KGK Jet India are intentionally engineered to print dynamic text, graphics, logos, and variable codes directly onto blank or generic carton surfaces. This inline approach drastically minimizes customer inventory and eliminates pre-printed box waste.

To handle large-format printing requirements (like printing large compliance labels or brand logos directly onto a box), the KGK Jet HQ8500 features extensive multi-printhead capabilities. A single centralized controller can manage up to 4 different heads with varying print heights. By stitching 4 printheads seamlessly together, you can achieve an expansive, high-resolution print window spanning from 1 mm up to 520 mm in height. This effectively transforms your industrial ink jet printer into a localized, on-demand digital press.

Challenge 4: Operational Complexity and System Footprint

The Challenge

As manufacturing lines expand, production managers frequently face space constraints when integrating new equipment. Traditional case coding systems often require massive standalone controller cabinets, complex umbilical configurations, and separate user interfaces for every individual line or printhead. Managing multiple asynchronous systems increases user error, setup times during product changeovers, and maintenance footprints.

The Production Impact

Operators waste valuable time configuring multiple individual printers during product changeovers, increasing the risk of entering the wrong batch code. Furthermore, bulky equipment restricts operator movement and complicates routine line sanitation.

The KGK Jet Solution

KGK Jet addresses this through centralized control and ultra-compact engineering profiles across their product tiers.

1. Centralized Multi-Head Controllers

Both the flagship HQ8500 and the economical HQ1600 & HQ1500 lines allow a single primary controller to manage up to four independent printheads simultaneously. These systems offer ultimate flexibility by supporting ink jetting in both horizontal and vertical directions, simplifying structural installation across complex conveyor turns while drastically reducing the electronic footprint.

• KGK Jet HQ1600: An economical powerhouse delivering 300 DPI resolution with a maximum print height of 32.4 mm.
• KGK Jet HQ1500: A cost-effective solution providing 180 DPI resolution with a maximum print height of 70 mm.
• Flexibility Feature: Both models support easy adjustments to character height based entirely on the printhead angle and setup preferences.

2. The HQC Series: All-in-One Compact Performance

For lines demanding an ultra-compact, entry-level, yet rugged footprint, the HQC Drop on Demand Printers offer a lightweight, highly economical option:

• Print Capability: Sharp character heights up to 25 mm.
• User Interface: Features a large graphic LCD screen showing clear character displays, paired with large, distinct, color-coded operation buttons to prevent human input errors.
• Retrofit Design: Built with an all-in-one design where accessories store neatly inside the chassis, making it incredibly straightforward to retrofit onto existing, tightly packed production lines.

Challenge 5: Coding on Environmental Lamination and Glossy Coatings

The Challenge

To protect products from damp warehouse conditions, moisture ingress, and scuffing during long-distance transit, many modern carton boxes are finished with an outer protective film, UV gloss coating, or heavy lamination. When standard water- or oil-based inks encounter these slick, non-porous surfaces, they cannot penetrate the material. The ink sits loosely on top, resulting in smearing, running, or rubbing off completely under minimal mechanical friction.

The Production Impact

Unreadable, smeared codes on laminated surfaces break the traceability loop. If transit rubbing erases a lot number or manufacturing date, the product loses its legal compliance status instantly.

The KGK Jet Solution

When physical ink-based solutions are pushed past their physical limits by high-gloss lamination, manufacturers must transition to alternative technology. KGK Jet India provides robust CO₂ laser marking systems as the ideal alternative for laminated materials.

Laser marking offers a permanent, ink-free coding option. The CO₂ laser beam interacts directly with the laminated layer or a specialized laser-reactive coating on the box, instantly vaporizing the top layer to reveal a permanent, ultra-sharp, high-contrast mark. Because the process is entirely thermal and optical, there is zero ink drying time, zero risk of smearing, and no fluid consumables required.

Technical Insight: To achieve clean contrast without piercing through the structural corrugated wall beneath the lamination, it is critical to run material samples across different laser wavelengths. KGK Jet’s applications team tests individual substrates to dial in the perfect wavelength, power setting, and speed for clean, high-resolution text and graphics.

Technical Overview: Selecting the Right KGK Jet Printhead

To help you choose the ideal combination for your production requirements under the HQ8500 controller framework, review the technical matrix of available Piezo and Thermal (TIJ) printhead configurations below:

Conclusion: Driving Efficiency in Secondary Packaging

Optimizing your secondary packaging line requires balancing print precision, machinery resilience, and operational flexibility. By directly addressing the root causes of coding challenges—whether through the extended throw distance of the M800 printhead, the multi-head scalability of the HQ8500, or the permanent tracking of CO₂ laser markers—KGK Jet India empowers manufacturers to transition from reactive troubleshooting to proactive optimization.

Eliminate expensive pre-printed box waste, protect your hardware from costly line impacts, and achieve perfect barcode readability on every batch. Partner with KGK Jet to integrate a scalable, automated system built to keep your production line running smoothly.

Contact our application engineers today for a custom line analysis and live demonstration
