Continuous Inkjet Printer - JPT2900
- A 5.7-inch color LCD touch screen and IP54 ingress protection ensure a user-friendly interface in dusty and humid working environments.
- Superior printing function along with new generation P-type print head, ensure stable and reliable production. Capable of coding 4 lines, high-performance dye and pigment inks guarantee to meet all modern code requirements, whether it's in food, beverage, pharmaceutical, cosmetics, automotive, mobile accessories and extrusion industry applications.
- Print date, batch number, graphics, logo, 1D, 2D barcode and other information on your packaging.
The JPT2900 Benefits
High speed coding
New print-head design (P-type) for high-speed & legible 4 line coding. Also equipped with Fluorine coated nozzle, which protect print-head from contamination.
Extended language support and Weighing machine connectivity
Language support for both software & hardware including English, Arabic, Chinese, Korean, Italian, German, Spanish, Iranian & Turkish. Convenient to integrate on-line or off-line check-weigher machine of any brand.
Unique diaphragm pump advantage
KGK Jet's ink delivery system is powered by a diaphragm pump. These pumps are more efficient and reliable than geared pumps. A diaphragm pump component does not come in contact with ink and solvent this prevents fluid contamination.
Scheduler Auto Start and Stop
Designed to start the machine immediately even if machine is not operated for very long time. No service engineer visit is required resulting in longer up time for the machine.
Automatic Nozzle Capping Technology
KGK Jet Patented Nozzle Capping Technology automatically close the nozzle, if the printer is not in use.
This prevents ink getting exposed to external environment and contamination resulting significant savings for customers.
Stable coding even in humid and dusty environment
Positive air pressure inside the print-head, keeps dust and humidity out, resulting in no contamination of head and ink. IP54 protected JPT2900 print head need not clean before every start & stop.
Applications
Coding on Flexible Films and Foil
Coding on PET Bottles
Coding on Carton Box
Coding on Rigid Containers
Coding on Cable and Wire
Coding on Pipe
Coding on Metal
Coding on Label
Coding on Wood
Coding on HDPE Bags
Product Specification
| Model | JPT2900 | ||||
| Item | JPT2900-D50 | JPT2900-P60 | |||
| Ink Type | Dye | Pigment | |||
| Nozzle Diameter | 50µm / 60µm / 50H µm | 50µm / 60µm | |||
| Dustproof waterproof | IP54 | ||||
| RoHS | Compliant | ||||
| Operation interface | 5.7 inch coloured LCD touch Screen | ||||
| Text Height | Supports 4 vertical line (26 Dots), 0.8~5mm (40µm) 1~10 mm (50µm) , 2~10mm (60µm) | ||||
| Max Printing Speed (Text/Second) (5x5 dot matrix, Text Spacing 1) | 1780~3200 (depends on nozzle and inks) | ||||
| Number of printing lines and dot matrix | (1 ~ 4 Lines) 5×5, 5×N, (1 ~ 3 Lines) 7×5, 7×8, 7×N,(1 ~ 2 Lines) 9×7, 9×9,10 8,12×10 (1 Lines) 16×12,16×16, 24×18, 24×24 | ||||
| Number of message register | Maximum 999 | ||||
| Number of message characters to register | Maximum 999 | ||||
| Character Type | Letters (upper/lower case), numbers, symbols, hiragana, katakana, kanji (JIS first and second), simplified Chinese characters (GB2312), user-customized fonts | ||||
| Date/Expiry Printing Function | Western calendar, year number, year, month, day, day of the week, time (12/24 hour format), the number of days in the whole year, the first, middle and last days of the weeks and months in the whole year (setting variable AM/PM, text replacement function) ( Year - month - day, hour, minute, second, week, up to 4~15 lines of other text can be replaced). | ||||
| Numbering Function | Maximum 10 digits, set any initial value, increment/decrement, set number of digits, zero elimination function (high-order zeros are replaced with spaces and aligned forward), number function (characters other than numbers can be replaced), and base system setting (2~36 hexadecimal) | ||||
| Distance Printing Function | Maximum 10 digits, can be edited separately (text inserted between numbers) | ||||
| Barcode | ITF, NW7, EAN, Code39, Code128, UPC, Code93 | ||||
| External Interface | RS-232C, Encoder, USB | ||||
| QR Code | DataMatrix, QR code | ||||
| Data Entry Method | 5.7 inch Touch Screen, RS-232C | ||||
| Usage Environment | 0~40?, 10~85%RH (no condensation) | ||||
| Power Supply | AC100-240V, 50/60Hz, 80 watts | ||||
| Weight | 25KG | ||||
| Overall Dimensions (LxWxH) | Host: 400mm x 280mm x 530mm (excluding projection) Head: ø49.2mmx197mm | ||||
| Ground | D Type Grounding | ||||
| Photo sensor | Reflecting type / transmission type, cable length : 1 meter min. to 5 m max. | ||||
| Encoder set Stand | 5000 or 10000 ppr, cable length : 1 m min. to 5 m max. | ||||
| Stand | Print-head stand, table top controller stand. | ||||
| Communication cable | RS232 cross cable, cable Length : 1 m min. to 15 m max. | ||||
| Push button switch | Connectable to the photo sensor connector and usable for manual character verification. | ||||
| Alarm status | 3 light alarm beacon. | ||||
Product Diagram
Product Catalogues

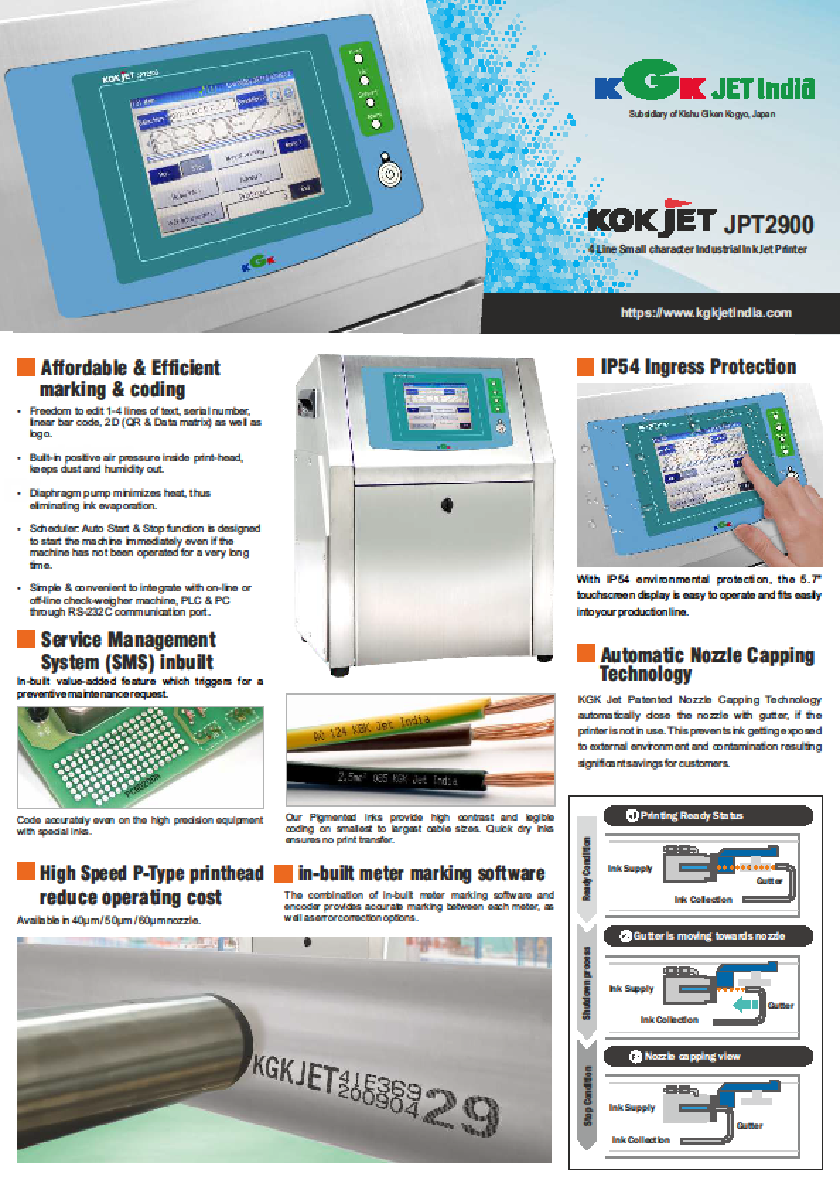

Download the JPT2900 Catalogue
